ĐỒNG HỒ ĐẾM SÉT CSV 3EX5050 0A SIEMENS BỘ ĐẾM SÉT CSV 3EX5050 0A ĐẾM SÉT SIEMENS CSV 3EX5050 0A

Mã sản phẩm : CSV 3EX5050 0A

Liên hệ

Mô tả : 3EX5 050-0A Surge Monitor Surge counter with leakage current meter (0-10 mA) 5 digit cyclometer at least 2 counts/ second Frequency rating: 50Hz/60Hz/DC Voltage across/drop: No increase of surge arrester protection level Min. count current 200 amps 8/20 µs IP class: IP65 Drawing: 3HH 802 67094 Please consider a maximum earth lead of 2m for arrester-counter connection! Recommended cross section of earth lead: 35mm²

Nội dung chi tiết Bình luận

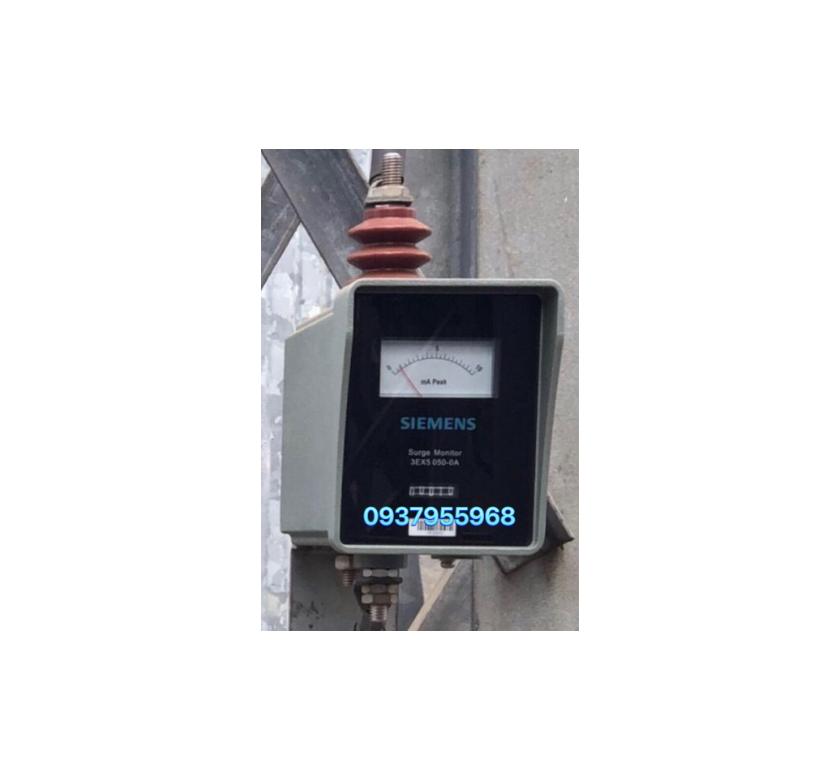

Đồng hồ đếm sét Siemens

3EX5 050-0A Surge Monitor
Surge counter with leakage current meter (0-10 mA)
5 digit cyclometer at least 2 counts/ second
Frequency rating: 50Hz/60Hz/DC
Voltage across/drop: No increase of surge arrester protection level
Min. count current 200 amps 8/20 µs
IP class: IP65
Drawing: 3HH 802 67094
Please consider a maximum earth lead of 2m
for arrester-counter connection!
Recommended cross section of earth lead: 35mm²

Mã sản phẩm khác:

Đồng hồ đếm sét 3EX5 050-3A dòng rò 0-50mA
